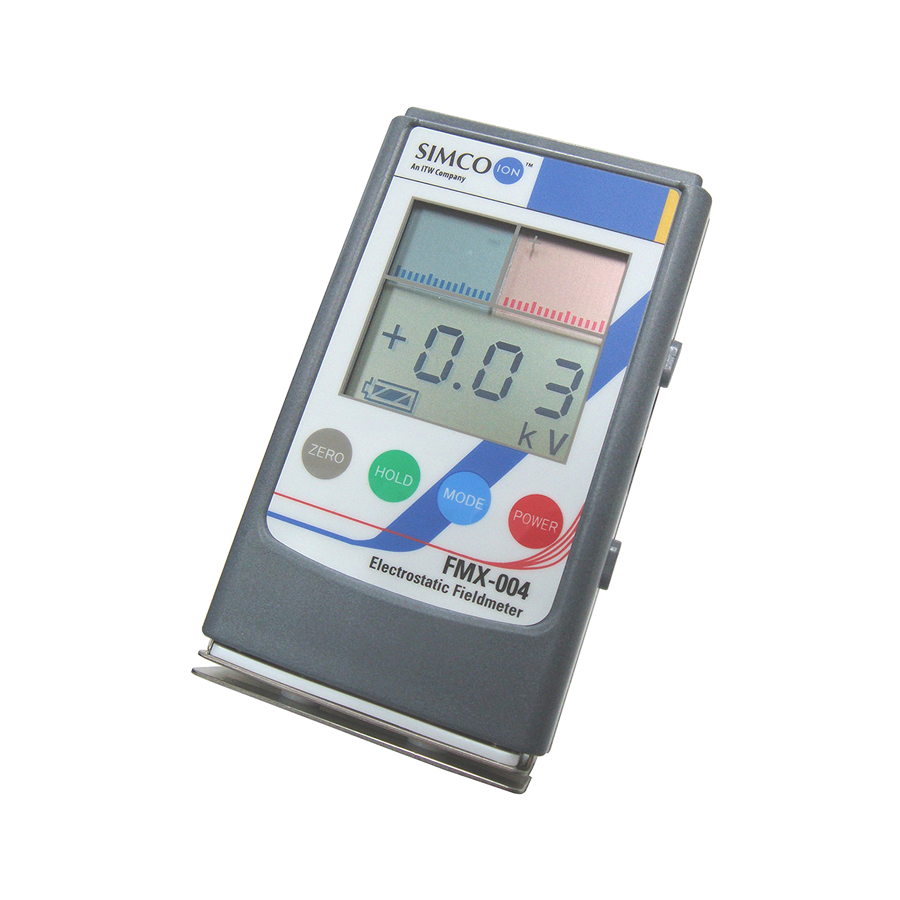

FMX-004 – Static Charge Meter

The FMX-004 field meter is a compact electrostatic field meter used for locating and measuring static charges.

Pocket size and three-button operation make it easy to use.

Features and Benefits

• Lightweight, compact design

• Range light assures accurate and repeatable measurements

• Automatic range switching up to ± 30 KV (30,000V) at distance of 1 Inch / 25 mm

• Digital and bar graph display with +/- indicators

• Automatic power off with inactivity

Results are simultaneously shown numerically and in bar graph format on the unique multi-coloured display

Also displays battery charge status. Power on/off, zero adjustment, Ion Balance (MODE) and hold are all push button operation.

The hold button allows the display to retain the static charge reading. This is useful where display is difficult to see during measurement.

Two LED guide lights help position the field meter at the right distance from a charged test object. The conductive case and ground snap facilitate grounding for accurate measurement. The circuitry of the FMX-004 has been designed to make measurements in areas using air flow.

The FMX-004 also offers an optional cable and bracket kit for Analog output. This feature allows you to extract and monitor your data. The Analog output bracket enables the field meter to be mounted to collect continuous reading. The Analog signal can be used with a PLC, data acquisition card, data logger, chart reader, etc.
